PVC Swing Check Valve according to DIN,ANSI,JIS Standard DN20-DN150 ( ¾" ~ 6" ) Working Pressure PN10.
PVC 2 Pieces Compact Ball Valve according to JIS Standard DN50-DN100 ( 2" ~ 4" ) Working Pressure PN10;
PVC Wafer Check Valve according to DIN ANSI JIS Standard DN150-DN300 ( 6" ~ 12" ) Working Pressure PN10;
PVC Foot Valve according to DIN Standard with Specification DN20-DN150 ( ¾" ~ 6" ) Working Pressure PN10;
PVC True Union Ball Valve DIN, ANSI, JIS Standard with BSPT & NPT Threaded DN15-DN100 ( ½"~4" ) Working Pressure PN16 & PN10;
PVC Pressure Pipe Fittings for Water Supply according to DIN Standard 8063 PN10;
NRV
Check Valve
PVC Check Valve
Plastic Check Valve
Swing Check Valve
Falnge Check Valve
UPVC Check Valve
Non Return Valve
Vertical Check Valve
Non-Return Valve
Check Valve PVC Swing
Horizontal Check Valve
Vertical Swing Check Valve
Horizontal Swing Check Valve
Water Check Valve
Wafer Check Valve
Wafer Type Check Valve
PVC Swing Check Valve with DIN ANSI JIS BS Standard DN20 (3/4") - DN150 (6")
Working Pressure: 150PSI PN1.0MPa
Standard: DIN ANSI JIS BS Standard Socket End
Dual-Use in Vertical / Horizontal
Data Sheet of PVC-U Swing Check Valve
| No. | Parts | Quantity | Material |
| 1 | Lower Body | 1 | PVC-U |
| 2 | Body Shaft | 1 | PVC-M |
| 3 | Body Seal | 1 | EPDM |
| 4 | Body Flapper | 1 | PVC-M |
| 5 | Counterweight | 1 | C.S.45 |
| 6 | Flapper Cap | 2 | PVC-U |
| 7 | Seat Seal | 1 | EPDM |
| 8 | Upper Body | 1 | PVC-U |
| 9 | Flow Arrow | 1 | PVC-U |
| 10 | Body Bolts | 4 -12 | S.S.304 / S.S.316 |
| DN | Inch | Mpa | Ød1 | Ød2 | ØD3 | L1 | L | W | n-MxL2 | |||
| DN | Inch | Mpa | Ød1 | DIN | ANSI | JIS | BS | ØD3 | L1 | L | W | n-MxL2 |
| DN20 | 3/4" | 1.0 | 18 | 25 | 26.67 | 26 | 26.6 | 36 | 23 | 96 | 64 | 4-M6x25 |
| DN25 | 1" | 1.0 | 23 | 32 | 33.4 | 32 | 33.4 | 46 | 25 | 107 | 75 | 4-M6x25 |
| DN32 | 1-1/4" | 1.0 | 31 | 40 | 42.16 | 38 | 42.1 | 55 | 35 | 129 | 110 | 6-M6x25 |
| DN40 | 1-1/2" | 1.0 | 39 | 50 | 48.26 | 48 | 48.1 | 65 | 37 | 146 | 120 | 6-M6x25 |
| DN50 | 2" | 1.0 | 48 | 63 | 60.28 | 60 | 60.2 | 80 | 38 | 161 | 141 | 6-M6x25 |
| DN65 | 2-1/2" | 1.0 | 64 | 75 | 73.03 | 76 | 75.2 | 94 | 45 | 193 | 152 | 8-M8x30 |
| DN80 | 3" | 1.0 | 78 | 90 | 88.9 | 89 | 88.7 | 112 | 55 | 230 | 178 | 8-M8x30 |
| DN100 | 4" | 1.0 | 98 | 110 | 114.3 | 114 | 114.1 | 135 | 74 | 296 | 201 | 8-M8x30 |
| DN150 | 6" | 1.0 | 146 | 160 | 168.28 | 165 | 168 | 194 | 90 | 375 | 292 | 12-M8x40 |
High Quality
Plastic Check Valve
PVC Swing Check Valve
PVC Swing Flange Check Valve
UPVC Flange Check Valve
UPVC Wafer Check Valve
UPVC Wafer Type Check Valve
PVC Vertical Swing Check Valve
PVC Horizontal Swing Check Valve
ANSI DIN JIS BS Standard
DN20 - DN400
PVC Swing Check Valve DIN ANSI JIS BS Standard for Water
( in Vertical or in Horizontal )
DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10
Feature:
1. Inclined Seal Plane Structure, Extra Weight in Flap, Can be Dual-Use in Vertical / Horizontal
2. Full-Flow, Low Resistance. Small Opening Pressure Shift
3. No Internal Exposed Metal Parts, No Springs, Not Easy to Be Blocked, Complete Anti-Corrosion
4. Low Open Pressure (<0.01kg/cm2).
5. Increased Wall Thickness, and Are Support to 1.5 Times the Back-Pressure PN
6. Connection with Stainless Steel Bolts, Easy Clean-Up of Internal Opening
CAUTION:
1. Arrow Mark Indicates the Flow of Fluid
2. When in Horizontal Install, Make Sure the Arrow Mark on the Top Side
PVC Swing Check Valve DIN ANSI JIS BS Standard for Water
Dual Use in Vertical or in Horizontal
DIN, ANSI, JIS, BS Standard.
Socket End
DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10
Feature
Good Corrosion Resistance.
Excellent Sealing Properties.
Full Flow. Less Pressure Loss.
Open Pressure Lower 0.01kg/cm2
No Metal Parts are Exposed to Fluid.
Can be Dual-Use in Vertical or Horizontal.
S.S. 304 or 316 Bolt Connection Valve Body
Outstanding Low Pressure Sealing Performance.
Super Thickness with High Strength of the Valve Body
Flapper & Shaft with Impact Resistant PVC-M Material can Withstand 1.6MPa Recoil Pressure Shock
CAUTION:
It is industrial water use, not suitable for chemical process.
Mounted with a fluid flow direction indicated by the arrow
Not suitable for gas entrained liquid, solid-liquid entrainment fluid
Installed horizontally, the arrow indicating surface must be upward

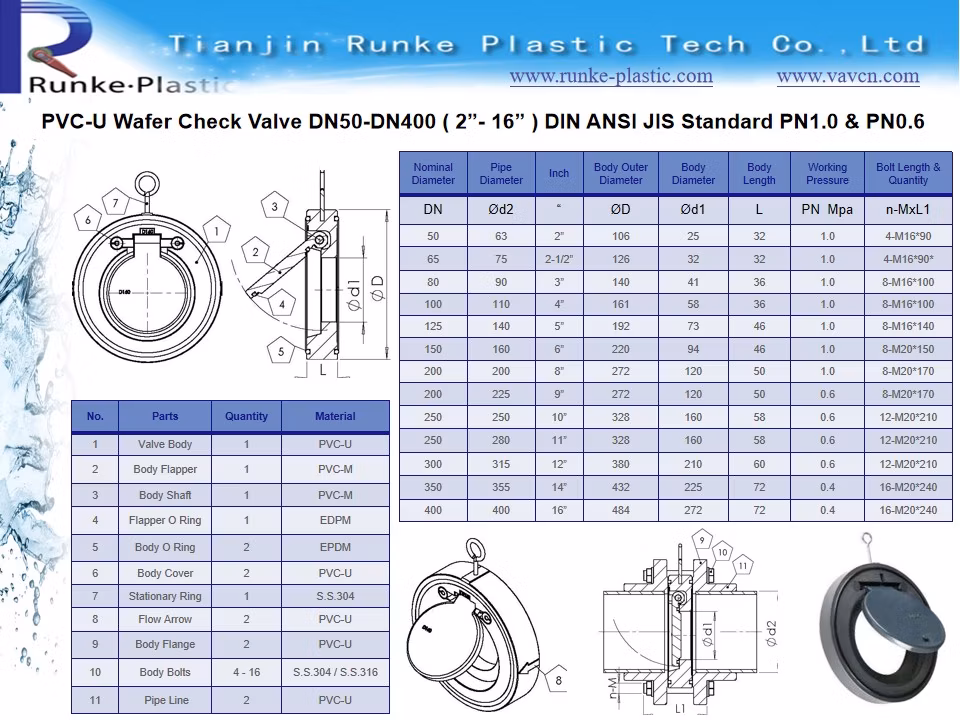

PVC-U Wafer Check Valve DN80-DN400 ( 3"- 16" ) DIN ANSI JIS BS Standard
Working Pressure:
DN80 - DN150 150PSI PN1.0MPa DN200 - DN400 90PSI PN0.6MPa
Standard:
DIN ANSI JIS BS Standard
Dual-Use in Vertical / Horizontal
Feature:
Can Be Vertical / Horizontal Dual-Use.
With DIN / GB (Metric and GB Standard) PN1.0MPa Wafer Flange.
Working Pressure:DN80-DN150 PN1.0MPa, DN200-DN400 PN0.6MPa.
Space-saving, Easy to be replaced. Thick Design, High Strength & Durable
Provide a Complete Set of Check Valve with Flanges ( Only DIN Standard )
Cautions:
Must be Installed in Accordance with the Flow Arrow.
The Stationary Ring Must be Installed Upwards When Used Horizontally.
Do not Install the Valve at a Distance Lower than 5 Times x DN of Pump Outlet.

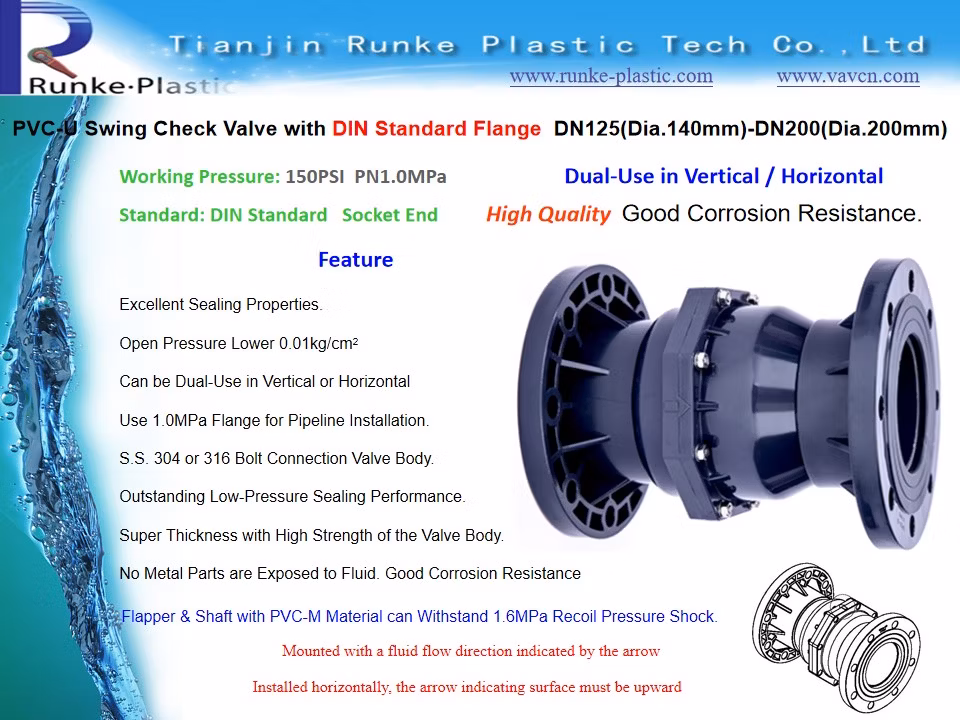

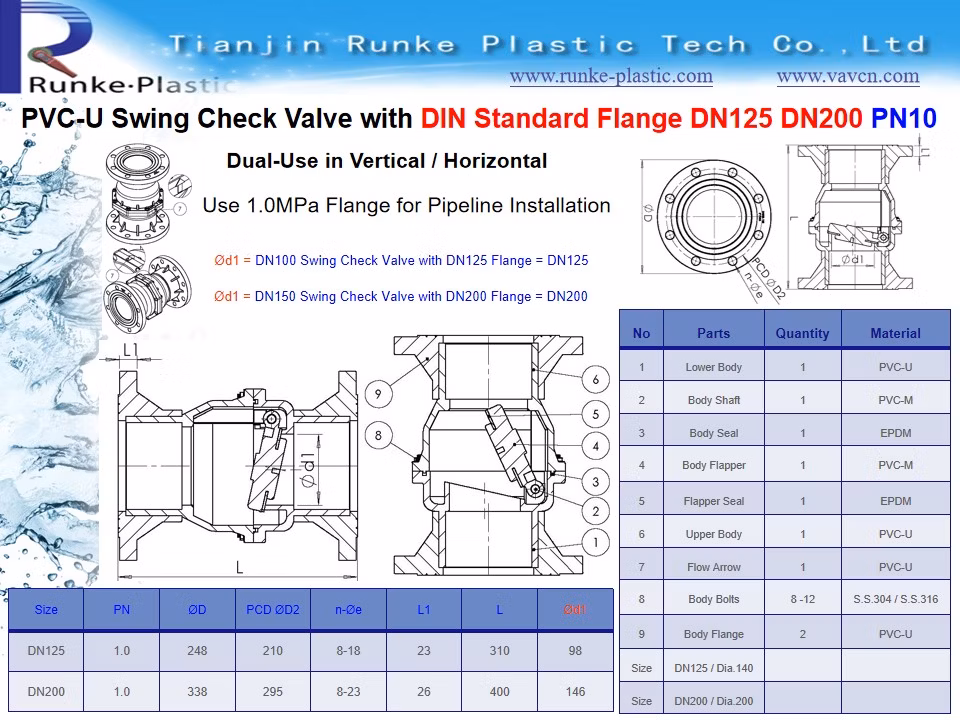

PVC-U Swing Check Valve with DIN Standard Flange
